GitHub Actions Runner Configuration

Runner Labels

As an alternative to using profiles, you can keep the entire runner configuration version-controlled within your workflow file. This works by specifying one or more labels in the runs-on configuration of your workflow.

Machine Label

The most important label is the one selecting architecture, operating system, and machine shape.

The label looks like nscloud-{os}-{arch}-{shape}

Note: only one nscloud label is allowed in the runs-on field of your workflow file. Namespace will not schedule any workflow job if runs-on specifies more than one nscloud label or invalid ones.

Supported machine labels per OS

UbuntuWindowsMacOS
OS
  • ubuntu-20.04
  • ubuntu-22.04
  • ubuntu-24.04
  • windows-2022
  • macos-sonoma
  • macos-sequoia
  • macos-tahoe
Arch
  • amd64
  • arm64
  • amd64
  • arm64
Shape

These are our standard shapes. Larger and odd-sized shapes are available, see Machine Shapes

  • 2x4
  • 4x8
  • 8x16
  • 16x32
  • 32x64
  • 2x4
  • 4x8
  • 8x16
  • 16x32
  • 32x64
  • 4x7
  • 6x14
  • 8x14
  • 12x28
  • 12x56

Examples:

LabelOSArchitecturevCPUMemory
nscloud-ubuntu-22.04Ubuntu 22.04AMD 64-bit4 vCPU16 GB
nscloud-ubuntu-22.04-amd64Ubuntu 22.04AMD 64-bit4 vCPU16 GB
nscloud-ubuntu-24.04-amd64-4x8Ubuntu 24.04AMD 64-bit4 vCPU8 GB
nscloud-ubuntu-22.04-amd64-4x8Ubuntu 22.04AMD 64-bit4 vCPU8 GB
nscloud-ubuntu-20.04-amd64-4x8Ubuntu 20.04AMD 64-bit4 vCPU8 GB
nscloud-ubuntu-22.04-arm64Ubuntu 22.04ARM 64-bit4 vCPU8 GB
nscloud-ubuntu-24.04-arm64-4x8Ubuntu 24.04ARM 64-bit4 vCPU8 GB
nscloud-ubuntu-22.04-arm64-4x8Ubuntu 22.04ARM 64-bit4 vCPU8 GB
nscloud-ubuntu-20.04-arm64-4x8Ubuntu 20.04ARM 64-bit4 vCPU8 GB
nscloud-windows-2022-amd64-4x8Windows Server 2022AMD 64-bit4 vCPU8 GB
nscloud-windows-2022-amd64-8x16Windows Server 2022AMD 64-bit8 vCPU16 GB
nscloud-macos-sonoma-arm64-6x14MacOS SonomaARM 64-bit6 vCPU14 GB
nscloud-macos-sequoia-arm64-6x14MacOS SequoiaARM 64-bit6 vCPU14 GB
nscloud-macos-tahoe-arm64-6x14MacOS TahoeARM 64-bit6 vCPU14 GB

Bleeding edge macOS

Namespace team continuously makes changes to macOS runner images to keep the software up-to-date and add new Xcode versions as soon as Apple releases them. To avoid regressions upcoming images go through multiple release stages before production release. This means that new Xcode versions become available to most customers with a short delay.

However, it is possible to take advantage of new Xcode versions early. You can enroll your runners into using bleeding-edge macOS images.

Note: Images in the bleeding-edge channel have not passed the full set of validation checks and may contain regressions. We are happy to hear feedback from early users of these images via Namespace support channels. But enrolling should be done without expectation of perfect stability.

Visit the runner profile editor and enable MacOS Bleeding Edge under Advanced Settings.

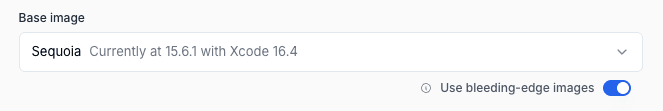

runner profile macOS bleeding edge checkbox

Cross-invocation caching

Using a Cache Volume

If you configured a runner profile using the web UI and use namespace-profile-name runner label, enable caching by simply going to the runner profile and enabling caching.

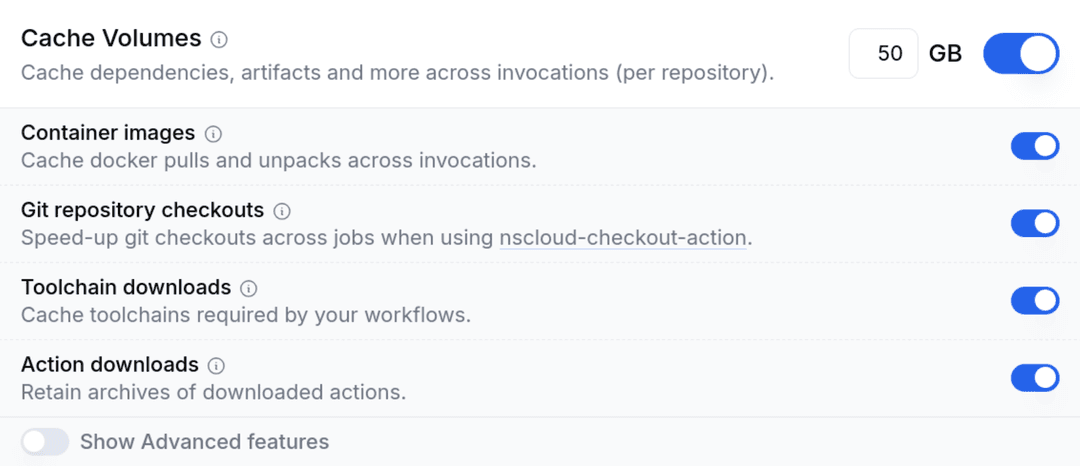

runner profile cache configuration

You can also enable caching for built-in software (Git, containerd, toolchain).

Example: Caching NPM Packages

Use our nscloud-cache-action to mount the volume under the paths you want to cache.

jobs:
  tests:
    runs-on:
      - namespace-profile-node-tests

    steps:
      - name: Setup npm cache
        uses: namespacelabs/nscloud-cache-action@v1
        with:
          path: |
            ~/.npm
            ./node_modules

      - name: Install dependencies
        run: npm install

      - name: NPM tests
        run: npm run test

If you run GitHub jobs in a container, you also need to mount the cache volume inside the container. See Running jobs in Containers

Caching Docker Images Across Invocations

Namespace also makes it trivial to cache container image pulls (and unpacks, often the most expensive bit) across invocations.

To enable this feature, just open the runner profile configuration, add a cache volume and enable Container images.

jobs:
  tests:
    runs-on:
      - namespace-profile-integration-tests

    steps:
      - name: Pull ubuntu image
        run: |
          time docker pull ubuntu

The second time the above example runs, the time to pull the ubuntu container image should be close to 0, as every layer was already cached by the first run.

Known incompatibilities for Docker Image caching

Docker image caching relies on standard Docker APIs. However, if you are using a tool that does not fully support Docker APIs, Docker Image caching can break your workflow. Known issues are:

Caching GitHub Tools

Namespace volumes can cache GitHub tools across invocations.

For example, actions/setup-go and actions/setup-python actions first look for their binaries in $RUNNER_TOOL_CACHE directory, before fetching from remote.

To make GitHub tool cache use Namespace volumes, open the runner profile configuration, add a cache volume and check Toolchain downloads.

jobs:
  tests:
    runs-on:
      - namespace-profile-go-python-tests

    steps:
      - uses: actions/setup-go@v5
      - uses: actions/setup-python@v4

Caching Git Repositories

With cache volumes, you can set your GitHub workflow to cache large git repositories to speed up the checkout phase.

After you enabled the Git caching (see below how), you'll need to change your workflows to call our optimized checkout action, which will make use of the cache volume to store and retrieve the git mirrors. See the nscloud-checkout-action page for more details.

To enable this feature, just open the runner profile configuration, add a cache volume and check Git repository checkouts.

jobs:
  tests:
    runs-on:
      - namespace-profile-integration-tests

    steps:
      - uses: namespacelabs/nscloud-checkout-action@v7
        name: Checkout
        with:
          path: my-repo
      - run: |
          cd my-repo && git status

Expected Use Cases

Note that the namespacelabs/nscloud-checkout-action is optimized to speed up only specific use-cases. If your workflows do not belong to these, you might not see the expected performance improvement.

  • Very large repositories: when the workflow needs to checkout a repository with many or big files.

  • Checkout long commits history: when the workflow needs to checkout many commits (the default is only 1).

  • Repositories with a large set of submodules.
  • Repositories with Git LFS objects.

Advanced: Protect Caches from Updates

You can configure Cache Volumes to limit what git branches can perform updates to them. This configuration allows you to use the same cache as the main branch from other branches (e.g. pull requests), but not commit changes to it.

To specify which branches can update the cache volume, open the cache volume configuration, then check Show Advanced features, and finally type the branch names.

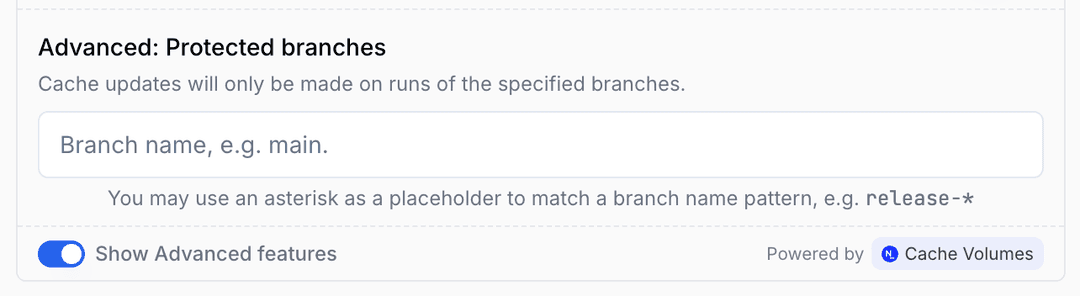

branch cache configuration

Any GitHub Actions job belonging to git branches that are not included in the allow-list, will be able to access the Cache Volumes, but their changes to the caches' content will not be persisted in the end.

Manage Cache Access per Job

Instead of protecting your cache per branch, you can also select which jobs may write to the cache. This allows you to share a cache amongst multiple jobs while some are not allowed to update the cache contents. Any job without commit rights can still access the cache and can also change contents locally. But any edits that it makes to the cache will be ignored for future runs.

If using runner labels, you can add the label nscloud-cache-exp-do-not-commit to a job.

jobs:
  tests:
    runs-on:
        - nscloud-ubuntu-22.04-arm64-4x16-with-cache
        - nscloud-cache-tag-cache-npm
        - nscloud-cache-size-100gb
        - nscloud-cache-exp-do-not-commit

    steps:
      - uses: actions/setup-node@v3

Namespace Remote Builders

Building very large images

This feature is advanced. For most users, relying on Remote Builders is the preferred option.

When building very large images, data transfers to Remote Builders can add up.

Your Docker builds can benefit from local cross-invocation caching, instead of using Remote Builders.

With "Local caching" enabled, Namespace automatically configures your instance to both upload build metadata to your workspace, so it's logged and traced; and caching is configured using a previously attached cache volume.

Make sure to size your cache appropriately, to benefit from high cache hit ratio.

To enable this feature, just open the runner profile configuration and add a cache volume. Next, select Locally cached for your Docker builds.

locally cached Docker build configuration

Caveats

  • Build caching using "local caching" is not shared with Remote Builders; each repository uses its own separate cache.
  • Although multi-platform builds are supported, only builds of the same platform as the runner itself, will experience native performance.

Large amounts of concurrent builds

Namespace Remote Builders are configured to offer great performance for many concurrent builds. These defaults provide ideal performance for most customers. If you run a very large amount of concurrent builds, please reach out to support@namespace.so and we'll scale your Remote Builders to match your needs.

Disable Build Caching

If you prefer to skip build caching altogether, you have two options:

  1. Revert the Docker build context to the default: Namespace configures Remote Builders as a separate buildx context. Before invoking a build that should not be cached, you can switch back to the default by calling docker buildx use default. E.g.

    jobs:
      build:
        steps:
        - name: Use default builder
          run: docker buildx use default

        - name: Build and push
          uses: docker/build-push-action@v5
          with:
            context: .
            platforms: linux/amd64,linux/arm64
  2. Disable Remote Builders: You can request that runners created for a particular workflow job do not use Remote Builders.

To disable remote builders, just open the runner profile configuration and select No caching for your Docker builds.

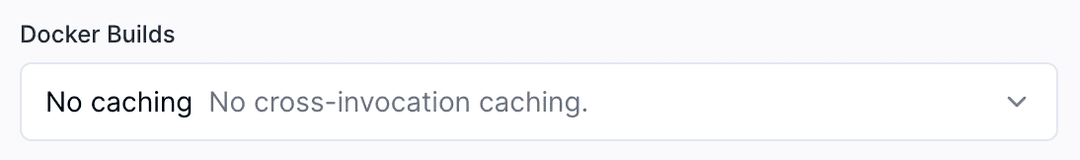

local Docker builder configuration

Advanced: Privileged workflows

Namespace Runner Instances run the runner software itself in a container. This approach facilitates software packaging and enables custom base images.

If your workflow requires deeper access to the host system, Namespace can run your workflow as privileged and in the host pid namespace. To do so, enable the corresponding features in your runner labels:

runs-on:
  - nscloud-ubuntu-22.04-arm64-4x16-with-features
  - namespace-features:container.privileged=true;container.host-pid-namespace=true

Advanced: Running Jobs in Containers

Namespace Runners support using custom containers for GitHub Jobs.

Accessing Namespace resources from Containers

To access Namespace resources from within a container, extra configuration is required. In particular, the directory /var/run/nsc/ must be mounted into the container, and namespacelabs/nscloud-setup-buildx-action needs to be run.

See the following snippet for a working example of accessing Bazel:

tests:
  runs-on: namespace-profile-my-profile-for-containers

  container:
    image: <my-image-ref>
    volumes:
      - /var/run/nsc/:/var/run/nsc/

    steps:
      - uses: actions/checkout@v4
      - uses: namespacelabs/nscloud-setup@v0
      - name: Setup Bazel cache
        run: |
          nsc bazel cache setup --bazelrc /etc/bazel.bazelrc
      - name: Bazel test
        run: |
          bazel --bazelrc=/etc/bazel.bazelrc test //..

Accessing Cache Volumes from Containers

To access Cache Volumes from within a container, additional configuration is required.

For example, when using an Ubuntu-based custom image, the following snippet provides a working, minimal example:

tests:
  runs-on: namespace-profile-my-profile-for-containers

  container:
    image: <my-image-ref>
    env:
      NSC_CACHE_PATH: ${{ env.NSC_CACHE_PATH }} # env.NSC_CACHE_PATH contains the path to Cache Volume directory, that is `/cache`.
    volumes:
      - /cache:/cache # Where the Cache Volume is mounted.
    options: --cap-add=SYS_ADMIN # Required to by nscloud-cache-action to call `mount`.

  steps:
    - uses: actions/checkout@v4

    - name: Install sudo
      run: |
        apt-get update -y && apt-get install -y sudo

    - name: Setup cache
      uses: namespacelabs/nscloud-cache-action@v1
      with:
        cache: rust

Please see our nscloud-cache-action documentation for details.
